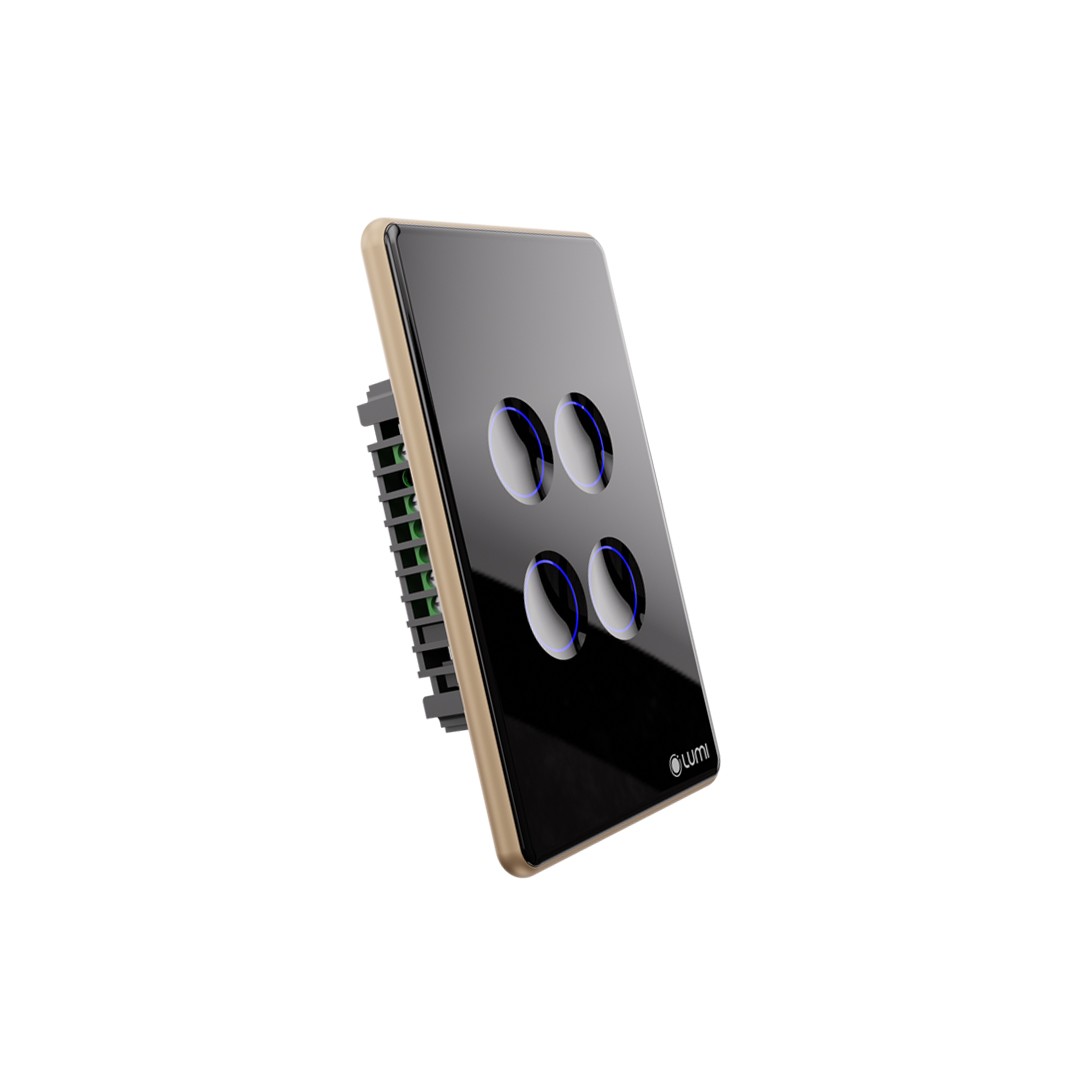

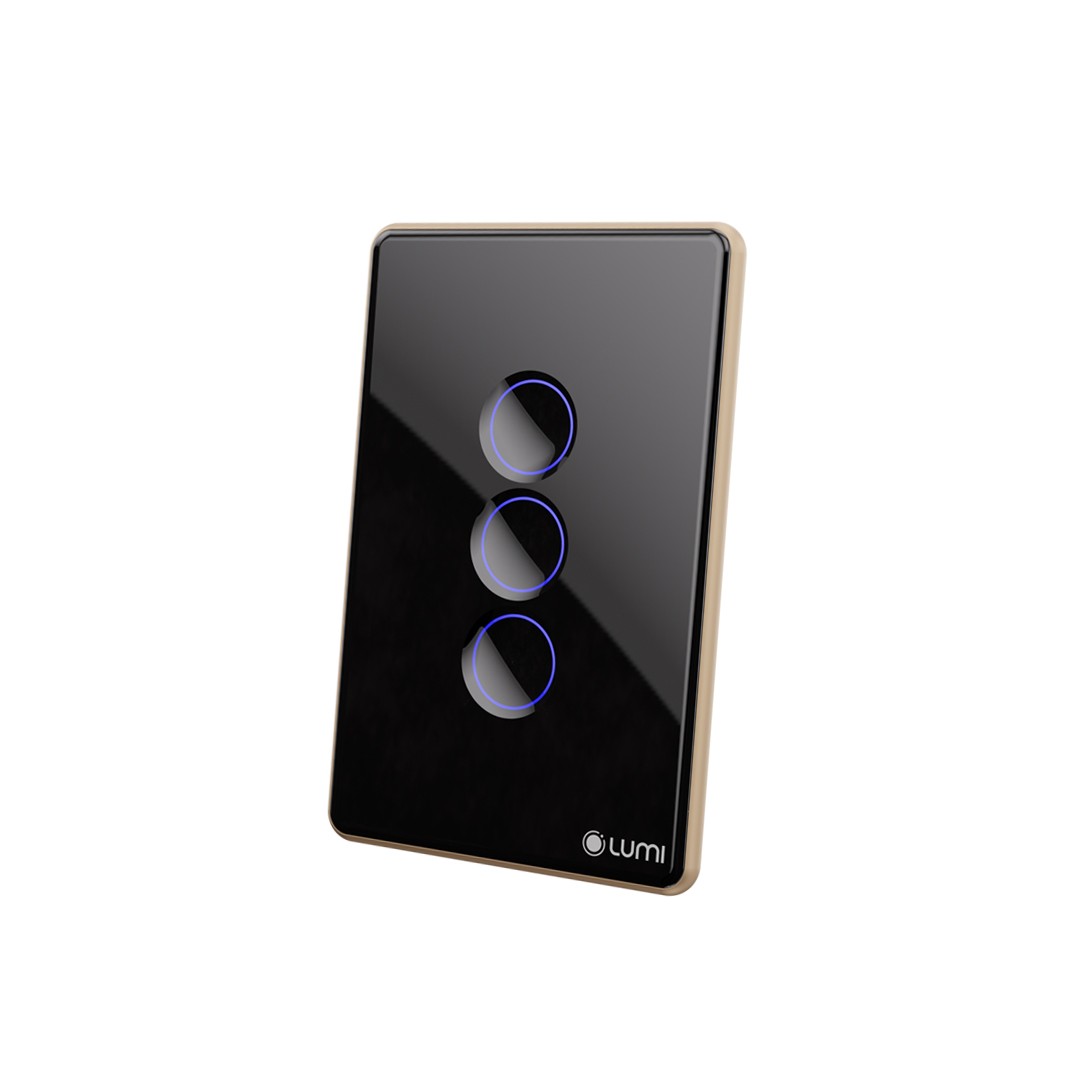

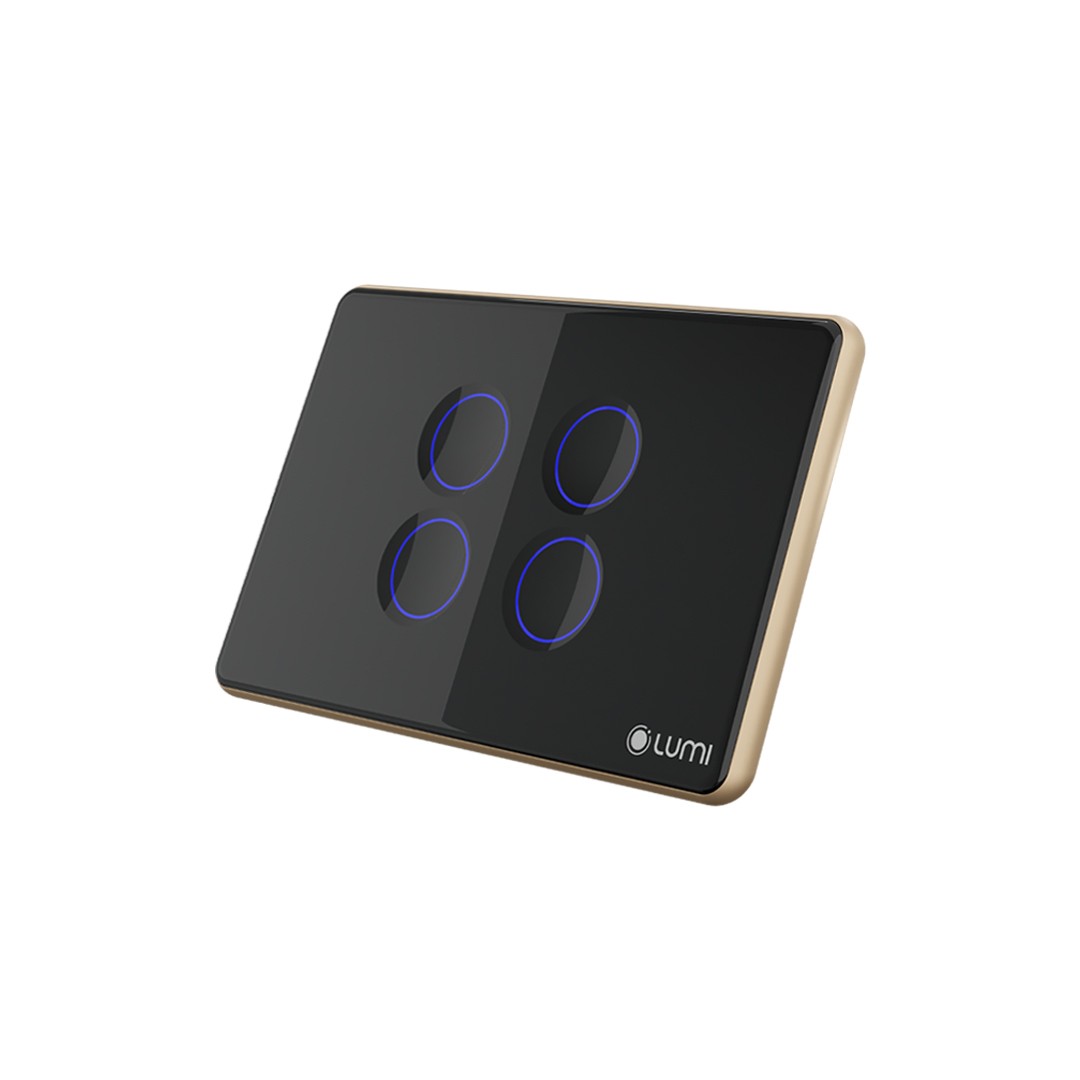

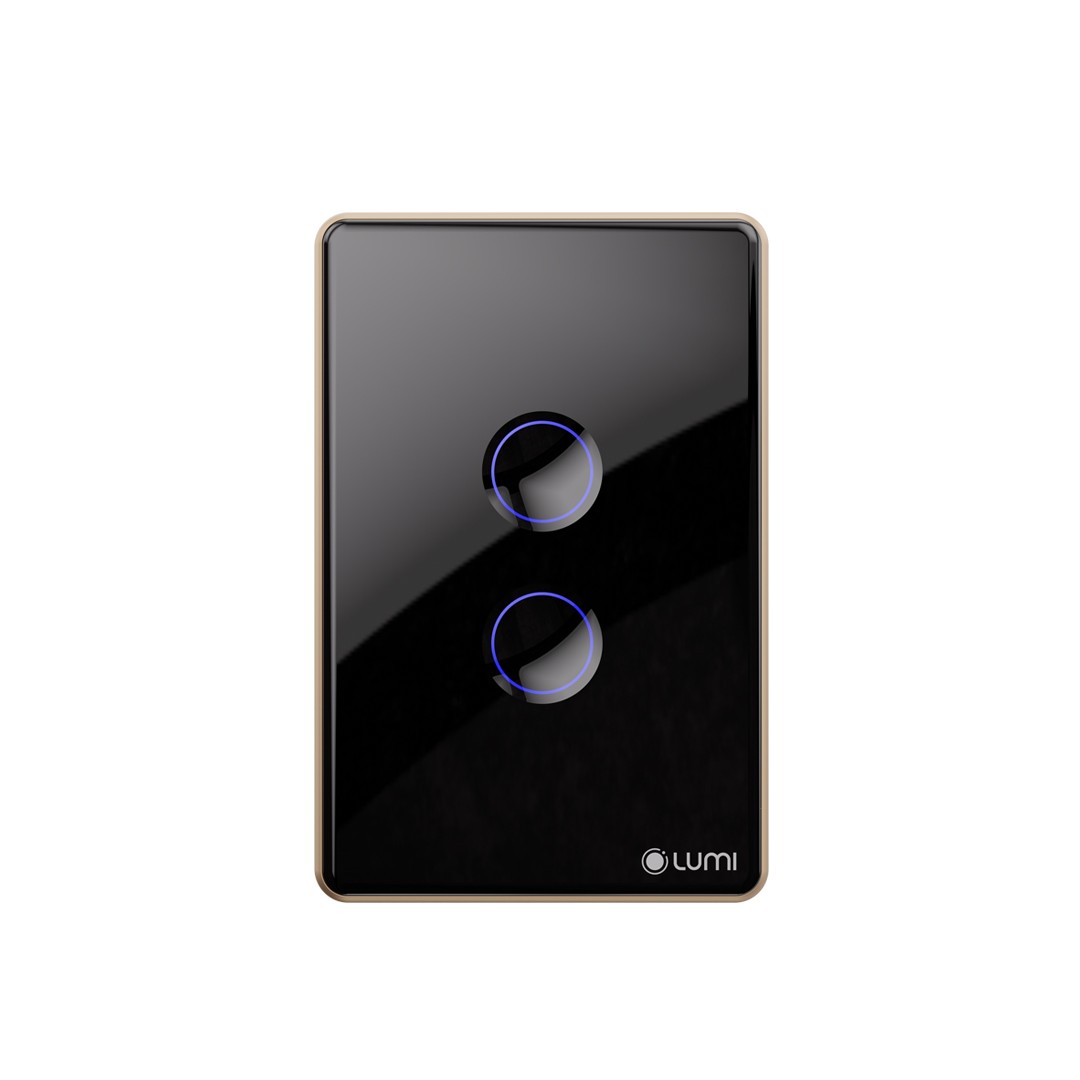

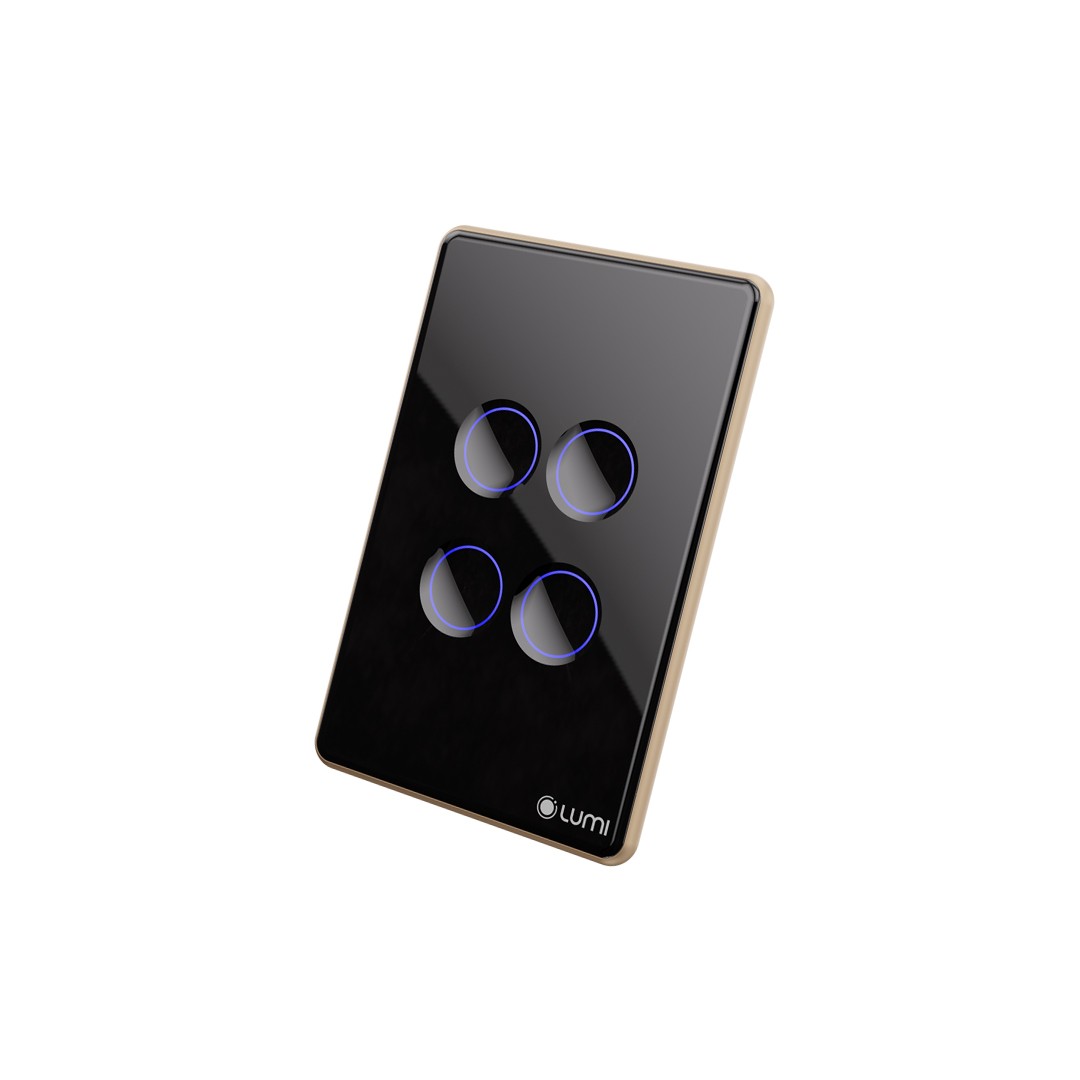

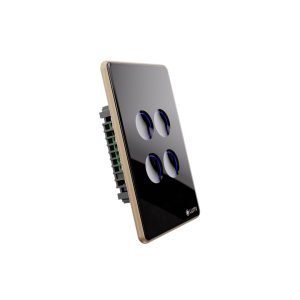

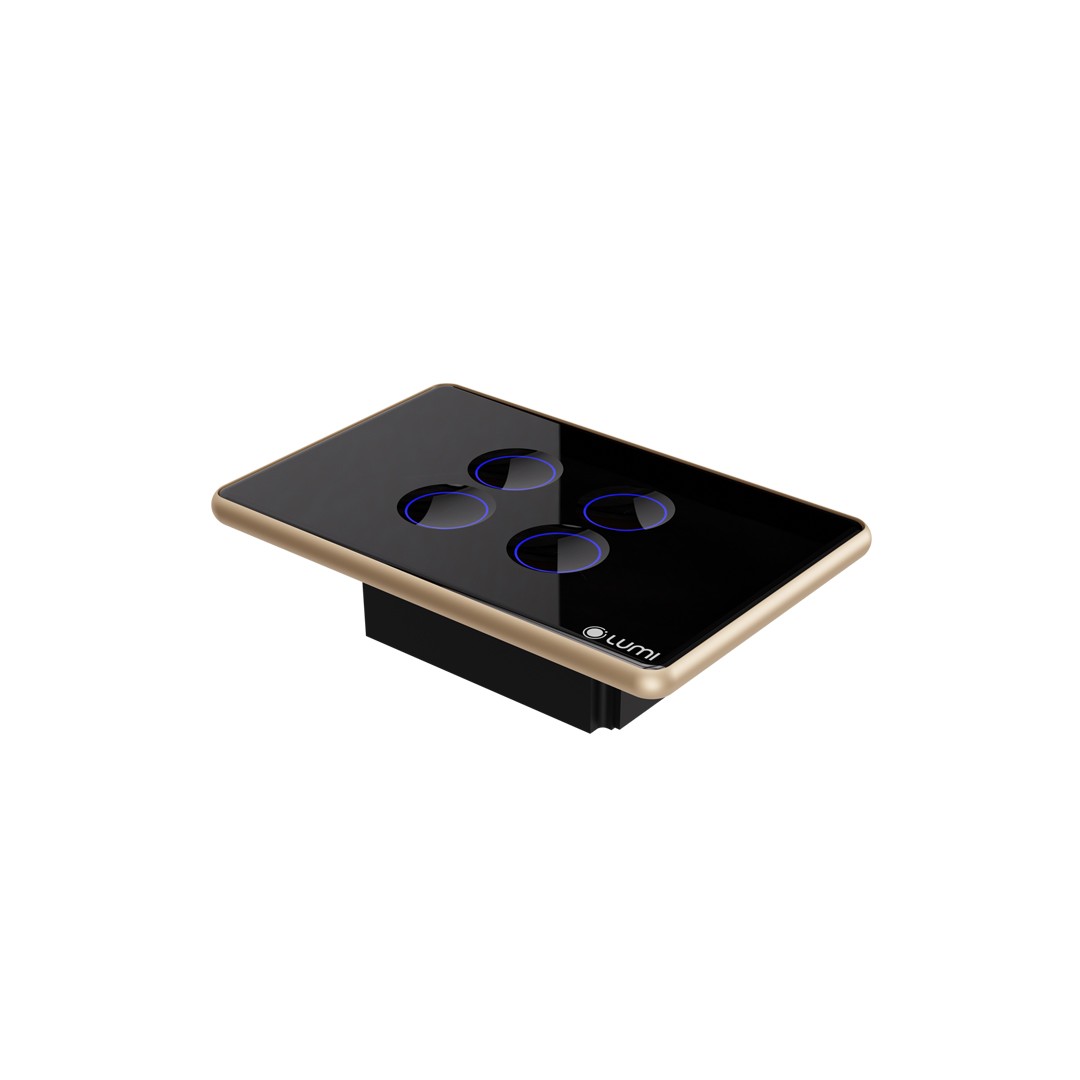

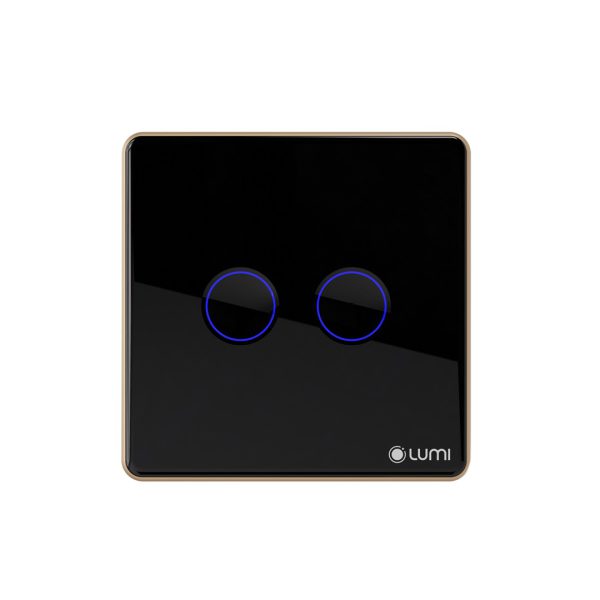

Luto Concave-Glass Smart Switch
2.475.000₫ – 2.640.000₫
- Operating Voltage: 100 – 240VAC ~ 50/60Hz
- Operating Temperature: 0℃ – 50℃
- Communication: ZigBee/BLE Mesh
- Zigbee Transmit Power: 10 dbm
- No-load Power Consumption: < 0.5W
- Load capacity: Resistive load: 3000W/channel | LED load: 300W/channel | Total load capacity: <4000W
- Dimensions (L x W x H): Rectangular: 123 x 78 x 32.5 mm | Square: 95 x 95 x 32.5 mm
- Overload Protection: Yes
- Overvoltage Protection: Overvoltage protection at 275V, automatic cut-off
- Diffuser: Even light diffusion
- Version: All buttons are CSC for versions 1, 2, 3, and 4 buttons
- Compatibility: Compatible with Simon single and double recessed boxes
- Moisture Resistance: High
The Luto smart touch switch with concave glass is a special product with advanced technology integration, allowing users to control the light through a touch on a smartphone.
1. The Luto Concave-Glass Smart Switch:
- The Luto touch switch is Lumi’s latest smart switch, providing a comprehensive living experience as well as the ability to control and optimize home electrical devices through touch operation, smartphone control, or voice control.

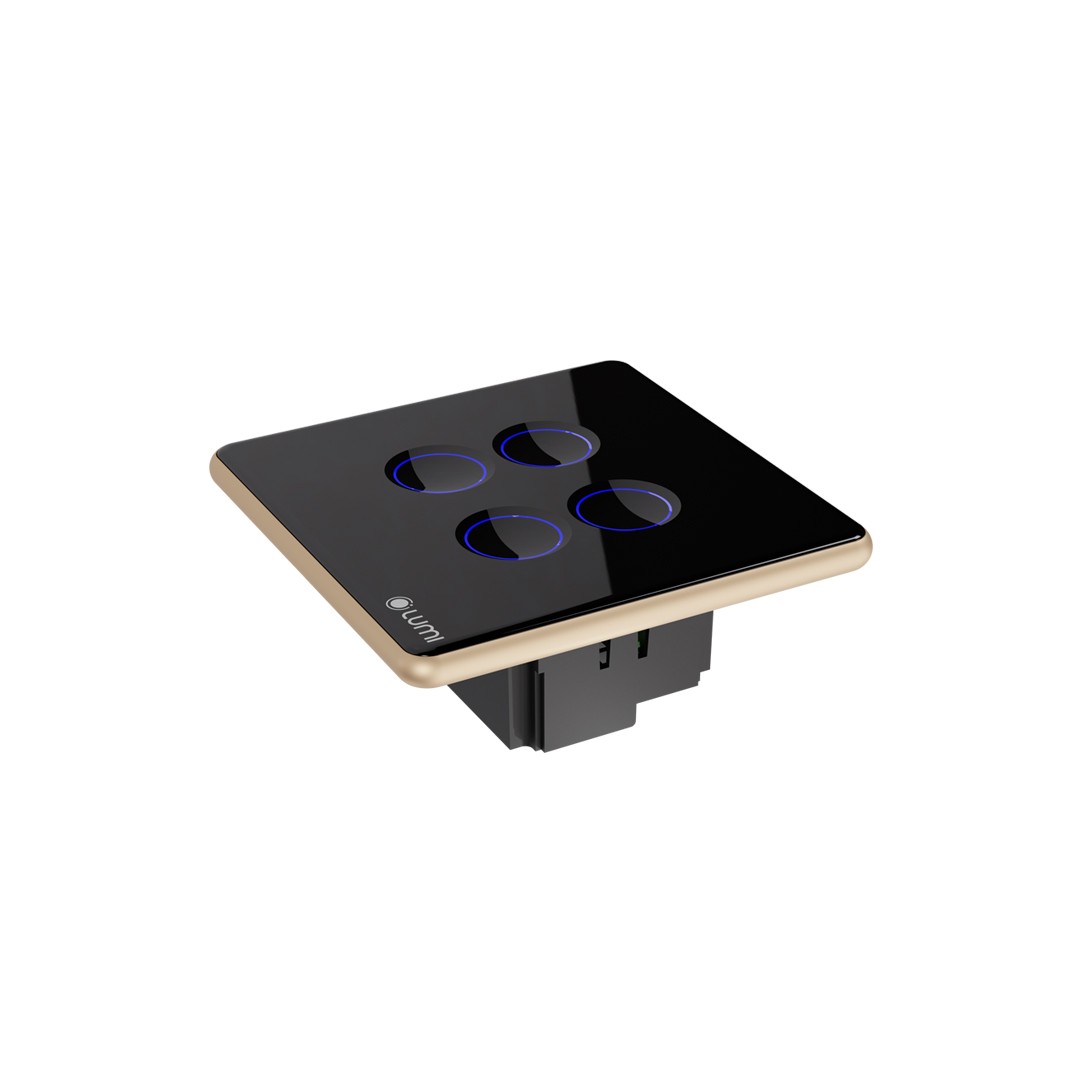

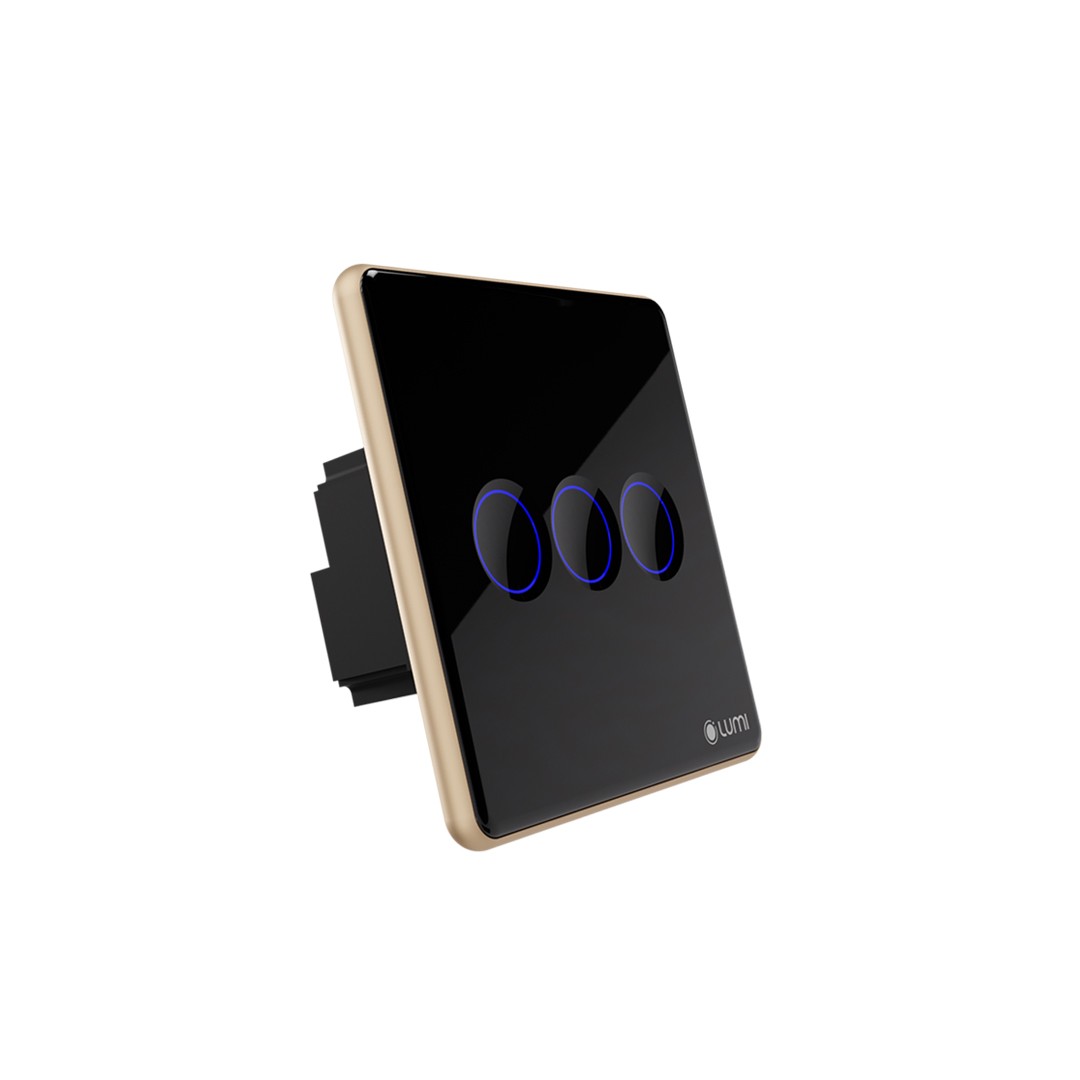

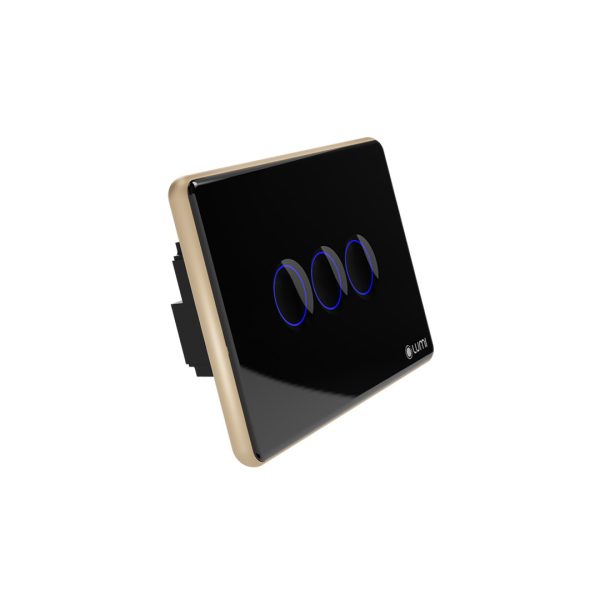

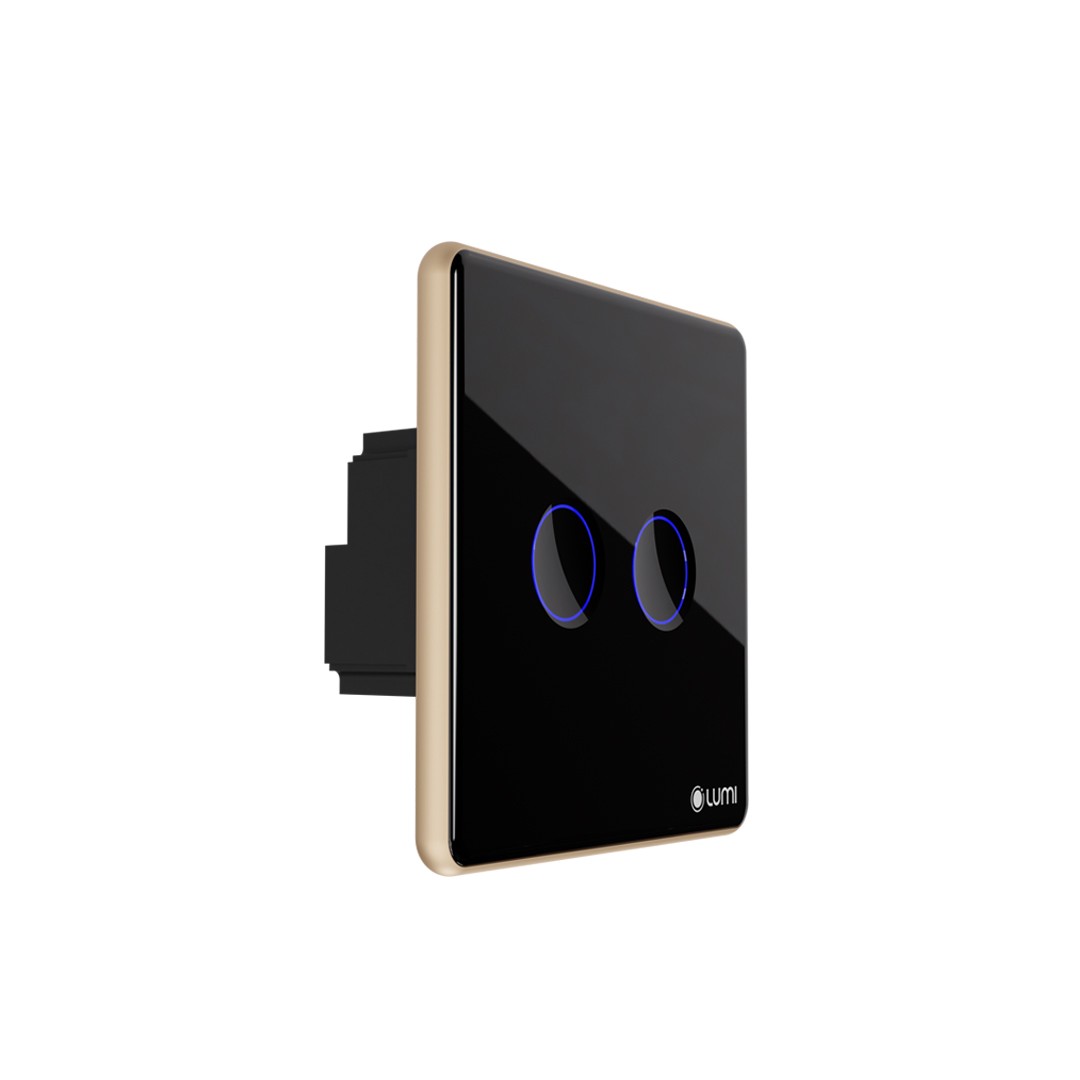

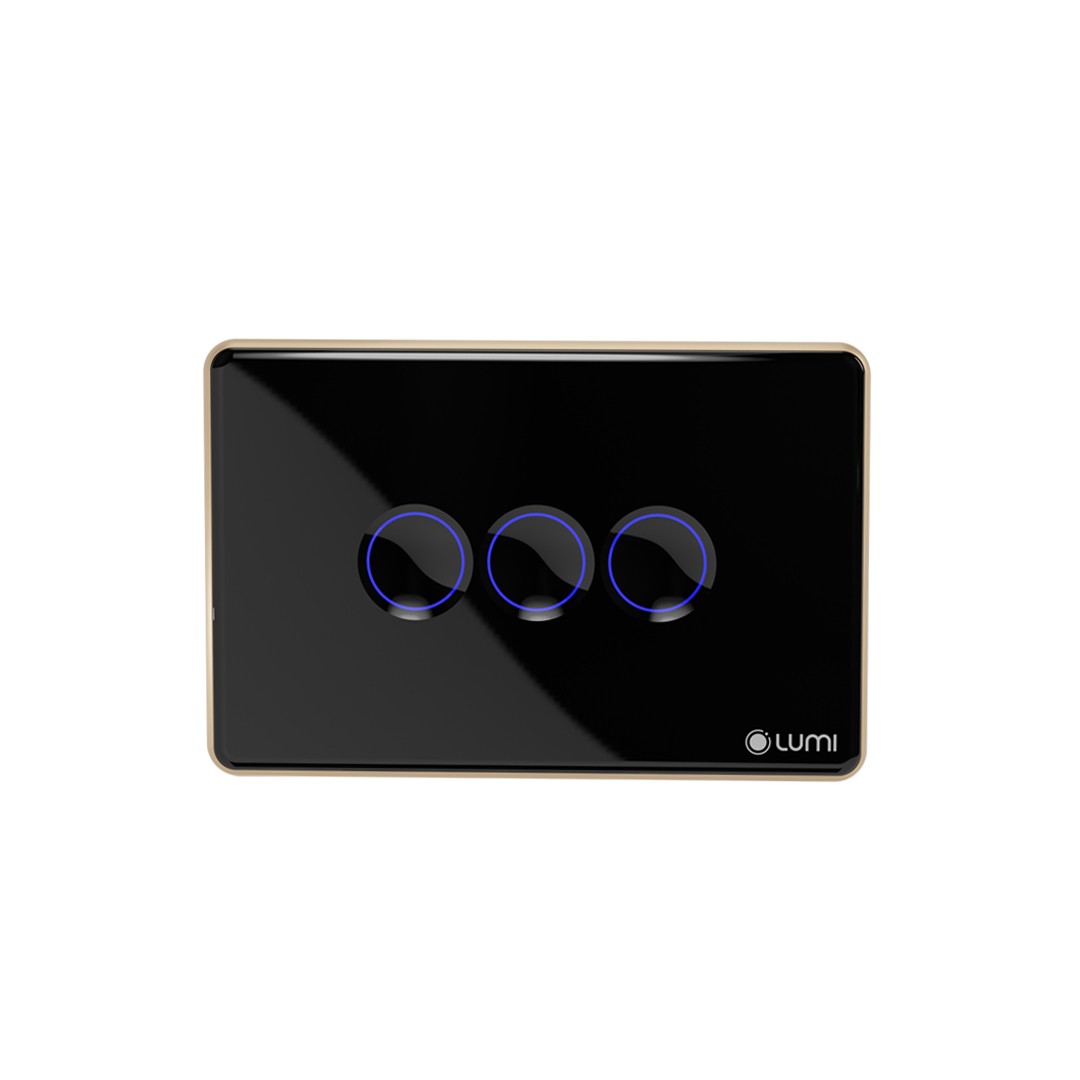

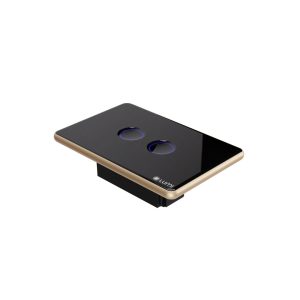

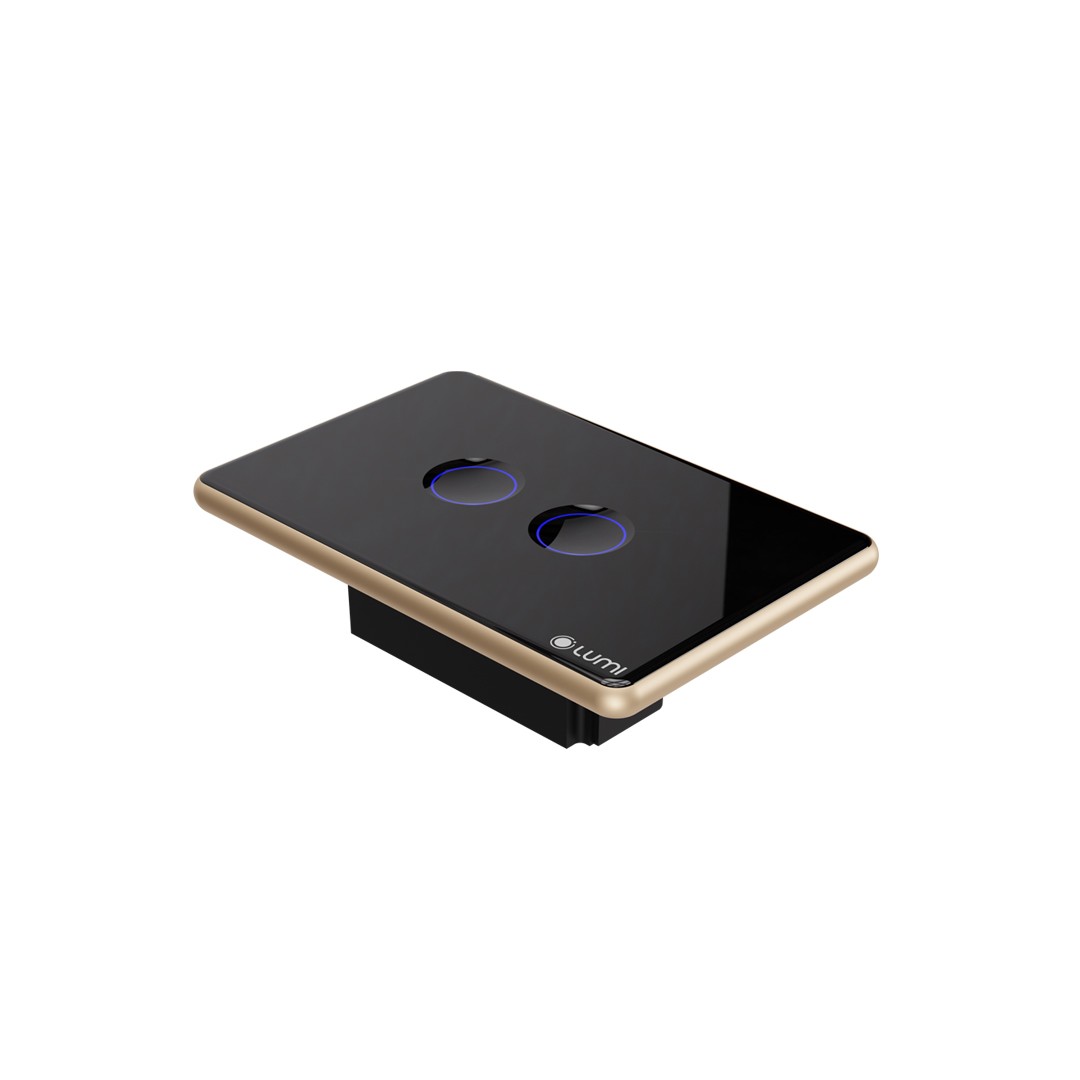

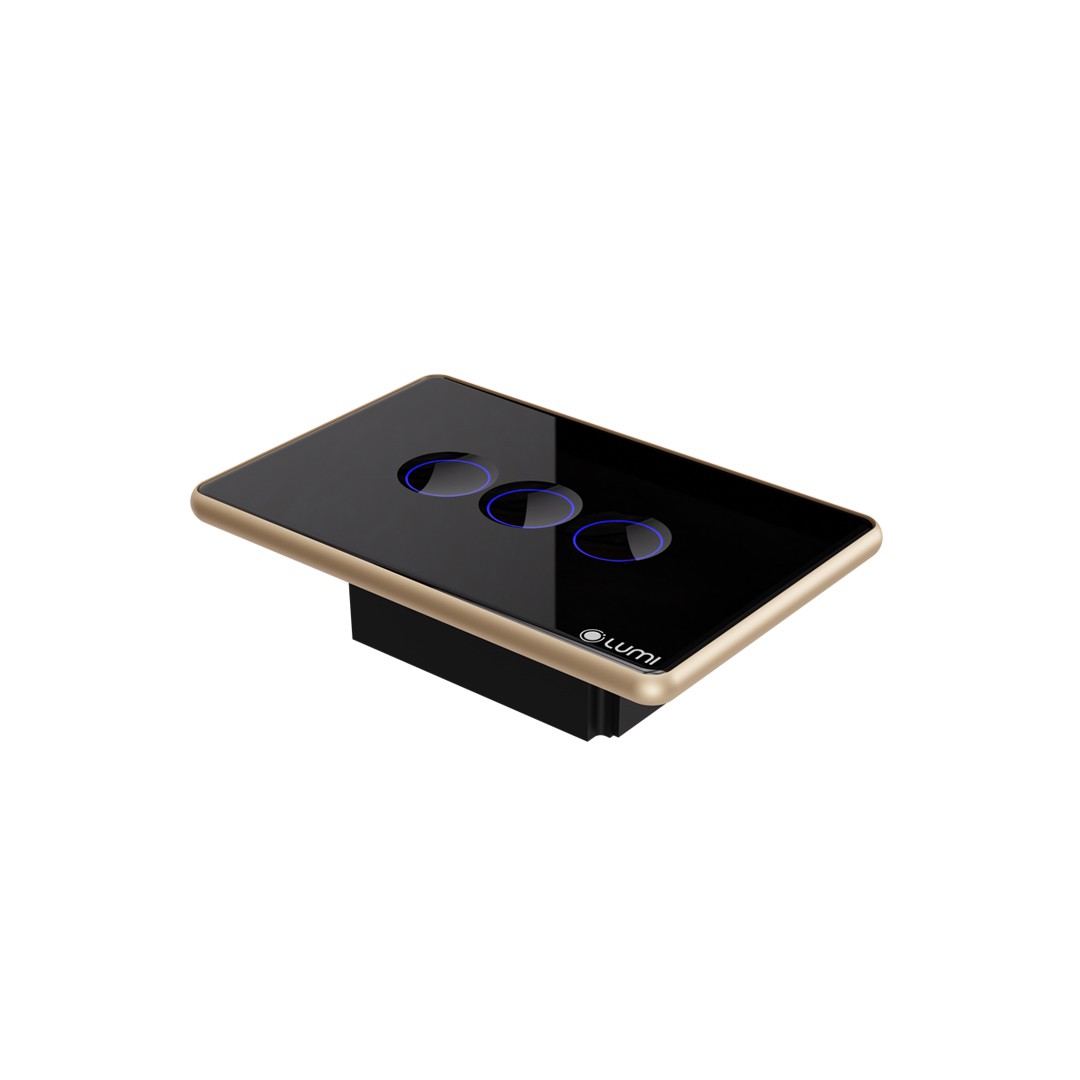

- Available in black, square or rectangular sizes, with 1 to 4 touch buttons.
- The Luto smart touch switch is a switch used in the Lumi smart home ecosystem to control devices such as lights, air conditioners, etc.
- The 2023 concave-glass switch, which has Zigbee/BLE Mesh communication technology, allows users to manage it remotely from any location with an Internet connection using a smartphone or tablet.
2. Features of the Luto Concave-Glass Smart Switch:
The Luto Concave-Glass Smart Switch is a new model that builds on the excellent features of earlier smart switches. It has smart upgrades that keep up with current design trends while also optimizing the user experience. A smart home switch can be installed and used in place of a standard switch. You may manage electrical devices, specifically:
- Turn devices on/off by lightly touching the switch button.
- Remote control, use a Smartphone to turn on/off, adjust lights, air conditioners, TVs, etc., or open/close curtains, rolling door, gates, etc.
- Give voice commands to control electrical devices.
- Can be directly connected to a smart sensor to become a smart sensor switch. When integrated, the switch will automatically turn on/off based on the user’s movement.
- Create convenient living scenarios: By setting up Rules and Scenes on the Lumi Life+ app, users can customize how smart devices in the house work simultaneously, creating automatic scenarios such as: receiving guests, eating dinner, entertainment, etc.
3. Advantages of the Luto Concave-Glass Smart Switch
3.1. Elegant, sophisticated, and classy design
- As part of the Lumi smart home solution product line, the design of the Luto concave-glass smart switch still retains its elegant and sophisticated appearance.
- The glass faceplate is carefully crafted to ensure sophistication in every design line, far superior to other types of smart switches.
- In addition to scratch-resistant tempered glass, the Anode aluminum frame is also a scoring factor for the Luto smart touch switch not only in terms of aesthetics but also in terms of durability.
- The Anode aluminum frame of the Luto smart touch switch is processed using anodizing technology; creates a thin but extremely durable anti-oxidation layer, only second to diamonds.
- The LED light shines evenly thanks to Double-Shot technology, ensuring the aesthetics of the device, providing the necessary light, and is safe for the elderly and children to use at night.
3.2. Safe to use and high sensitivity
The switch uses capacitive touch technology and isolated power, ensuring safety when using. The design of the blue LED (off) and red LED (on) around the button makes it easy to find in the dark and protect vision.
Users can control it via Smartphone/Tablet or by voice. In particular, the switch integrates overvoltage and overload protection; ensuring absolute safety for users during use.
3.3. Good moisture resistance
The Luto switch is enhanced with moisture resistance to ensure good water/moisture resistance during operation thanks to the addition of 4 rubber gasket positions:
- Rubber gasket on the connector
- Rubber gasket on the config button
- Powershell gasket
- Rubber cover for screw holes
3.4. High compatibility and customization
The Luto smart switch has high compatibility with various types of recessed boxes on the market.
All Luto switches are high-power switches and are easily compatible between Smart Lighting and Smart Home.
Luto is also simple to adjust to fit each family’s needs by configuring the LED schedule on the smartphone and changing the brightness over time.
4. How Luto Flat Glass Aluminum Frame Touch Switch works
The Luto flat glass touch switch works by the control of the central controller (Home Controller).
The operation of the device will be demonstrated by the following example:
- When the user issues the command “turn off the light” by touching the light button on the phone app, the command will be sent to the central controller via Zigbee/BLE Mesh.
- From there, the HC controls the touch switch to turn on/off the light device as requested by the homeowner.
5. Application of the Luto Concave-Glass Smart Switch
The touch switch is a modern and convenient device in life, with a variety of applications. Here, we will explore three important applications of the touch-sensitive switch:
5.1. As a LED touch switch
Touch switches are often used to control LED lights in the home or office. With the touch feature, you can easily turn the lights on/off without having to use the traditional button; creating convenience and modernity in controlling light.
5.2. Connect to infrared motion sensor switch
- Touch switches are able to connect to light sensor switches such as: motion sensor switch, infrared sensor switch
- When you enter a room or area, the sensor switch will detect your presence and automatically turn on the lights and will synchronize with the state of the touch switch.
5.3. As a switch to turn off other devices
- Touch switches can also be used to turn off other devices in the home or office, such as fans, air conditioners, or audio devices.
- The flexibility of this switch allows you to customize and control multiple devices from a single point, increasing convenience and effective management in your living space
6. Where to buy the Luto smart sensor switch?
Customers can buy the Luto Concave-Glass Smart Switch at the system of 150 Lumi agents nationwide.
In addition to the touch feature, the Luto Concave-Glass Smart Switch can connect to your smart home system. You may change the brightness, the operation schedule, and even create custom lighting effects based on your preferences and needs. To try this product right away, call the customer service hotline and they will assist you promptly.
1. Overall
Product Code: LM-Sxx/S-CB/CC or LM-Sxx/S-CB/CG
The LM-Sxx/S-CB/CC or LM-Sxx/S-CB/CG is a Lumi touch switch that supports turning on/off 1 to 4 output channels. They include a strong aluminum frame and a scratch-resistant tempered glass panel, giving them a modern, refined appearance.
2. Technical Specifications
Operating Voltage | 100 – 240V AC ~ 50/60Hz |
Operating Temperature | 0℃ – 50℃ |
Communication | Zigbee |
Zigbee Transmit Power | 10 dbm |
No-load Power Consumption | < 0.5W |
Load Capacity
|
No-Load: 3000W/channel |
LED Load: 300W/channel | |
Total Load Capacity: < 4000W | |
Dimensions (D x R x C) | Rectangle: 123 x 78 x 32.5 mm |
Square: 95 x 95 x 32.5 mm | |
Overload Protection | Yes |
Overvoltage Protection | Overvoltage protection at 275V, automatic cut-off |
Diffuser | Even light diffusion |
Version | All buttons are CSC for versions 1, 2, 3, and 4 buttons |
Compatibility | Compatible with Simon single and double recessed boxes |
Moisture Resistance | High |
3. Installation
Step 1: Wire the device.
Wiring diagram:
- L: Connect the live wire of the power supply.
- N: Connect the neutral wire of the power supply.
- 1,2,3,4: Connect the live wire of the loads.
Step 2: Install the switch in the recessed box.
- Remove the switch glass: Use a screwdriver to insert into the small groove on the switch bezel and gently push to remove the glass.
- Install the switch in the recessed box and reinstall the glass.
Note:
- Compress the electrical wires in the recessed box to fit the switch and avoid screwing into the wires.
- Do not screw too tightly, as this will bend the switch, warp the switch’s touch circuit, and prevent the switch from being turned on or off manually.
4. User guide
4.1. Turning on/off
To turn the switch on or off, simply tap the touch-sensitive surface once.
- When the switch is on, the LED ring lights up red.
- When the switch is off, the LED ring lights up blue.
4.2. Changing between toggle and momentary mode
Toggle mode:
- In toggle mode, tapping the touch ring once will turn the switch on or off. The switch will remain in the new state until it is tapped again.
Momentary mode:
- In momentary mode, tapping the touch ring will turn the switch on for a short period of time (500ms) before it automatically turns off.
To change between toggle and momentary mode:
- Press and hold the config button for 3 seconds until the LED on button 1 flashes red twice.
- Observe the status LED on the buttons: The LED will be off in momentary mode. The LED will be red in toggle mode.
- Tap the button you want to change the mode.
- Press the config button once or wait 10 seconds to exit the settings and save the mode.
4.3. Touch lock
Since 6/2019, the smart switch has a touch lock function, users will not be able to turn on/off manually and can only be controlled by the Lumi Life app. There are two types of touch locks: locking individual buttons or locking all buttons.
Press the config button 10 times in a row to lock and unlock the touch sensor.
- To lock: All LEDs will flash red 5 times.
- To unlock: All LEDs will flash blue 5 times.
To lock an individual button, press and hold the config button for 9 seconds until the LED on button 1 flashes red 3 times. Then, release the button and observe the LED status on each button.
- To lock: LED turns off.
- To unlock: LED turns pink.
Tap the button to change the lock/unlock status. After setting, quickly press the config button once or wait 10 seconds to automatically exit the setting mode.
4.4. Changing the brightness of the indicator LED
- The indicator light on the switch has two levels, bright or dim. For switches manufactured before 6/2019, users push and hold the config button for 8 seconds, seeing the indicator light change brightness before releasing.
- For switches manufactured after 6/2019, users must press and hold the config button for 5 seconds while the indicator light changes brightness before releasing.
4.5. Device Grouping
From February 24, 2020, the switch has added a device grouping feature without the need for software configuration.
Creating a Group
- Select a button to role as the master button. Process the following steps on this button first.
- Press and hold the touch button for 10 seconds until the LED blinks red twice, then release.
- Press the button again once to confirm. The LED will light up red..
- Repeat steps 2 and 3 for each button you want to add to the group.
Deleting a Group
- Press and hold the button you want to delete for 10 seconds until it blinks red twice.
- Press the button again once, then exit the configuration mode.
- To delete the entire group, delete the master button.
Exiting Configuration Mode
- After configuring, press the config button twice to exit.
- Alternatively, the switch will automatically exit the configuration mode after 1 minute.
Notes:
- To use this function, the switches must be connected to the network and be on the same network (belonging to the same HC or LC).
- A group can have a maximum of 5 switch buttons, and 2 buttons from the same switch cannot be grouped together.
5. Setup devices
5.1. Joining the network
- To set up the switch control via the app on the phone, users need a central controller (HC) and have created a home on the system.
- Users log in to the Lumi Life+ app > select Settings > select Device Settings > select HC > Zigbee > Join Network.
- The indicator light on the switch flashes red four times in a row with a cycle of 1s/1 time when joining the network successfully.
- If the switch does not join the network, the switch may have been configured, and the user can reset the device to return to the network joining mode.
5.2. Controlling devices on the Lumi Life+ app
After connecting the switch to the network, the user names the device and places it in a room to operate it using the Lumi Life+ app on the phone.
Similar to manual on/off, users tap the device icon to control it on/off.
- Bright icon: The switch is on
- Dark icon: The switch is off
In addition, users can configure the device with complex functions such as rule, scene, and schedule setup.
6. Device reset
6.1. Reset Zigbee 3.0 switch
From February 24, 2020, to reset and remove the device from the network, users press the config button five times in a row.
If the device is in the network, after the reset, the indicator light of the device will flash red twice in a row to indicate that the network has been deleted successfully. Then, it will flash red twice in a row again to indicate that it has been restarted and flash red three times in a row to return to the automatic search mode.
6.2. Reset Zigbee 1.2 switch
Before February 24, 2020, to reset and remove the device from the network, users press and hold the touch button for 5 seconds, when the indicator light flashes red, then release the hand.
Reset successfully, the indicator light flashes red three times in a row and the device returns to the automatic search process.
Note: Hold down any button and observe that all 4 indicator lights turn pink before releasing the button.
7. Packaged product set
The curtain smart switch set is packaged in a box including: 1 Luto smart switch set, 2 screws, 1 user manual.
