Automatic swing gate STING
26.480.000₫ – 33.770.000₫
- Open the gate via remote
- Italian imported engine
- ergonomic design, neat design with 1-component motor
- Allows opening ports up to 110°
- Warranty: 24 months
Connected version with smart home Lumi, which adds the following features:
- All operations from settings to controls can be done on smartphones
- Lumi’s ability to link to intelligent security systems
- Remove remote from smartphone, ensure safety when dropping remote
Overview

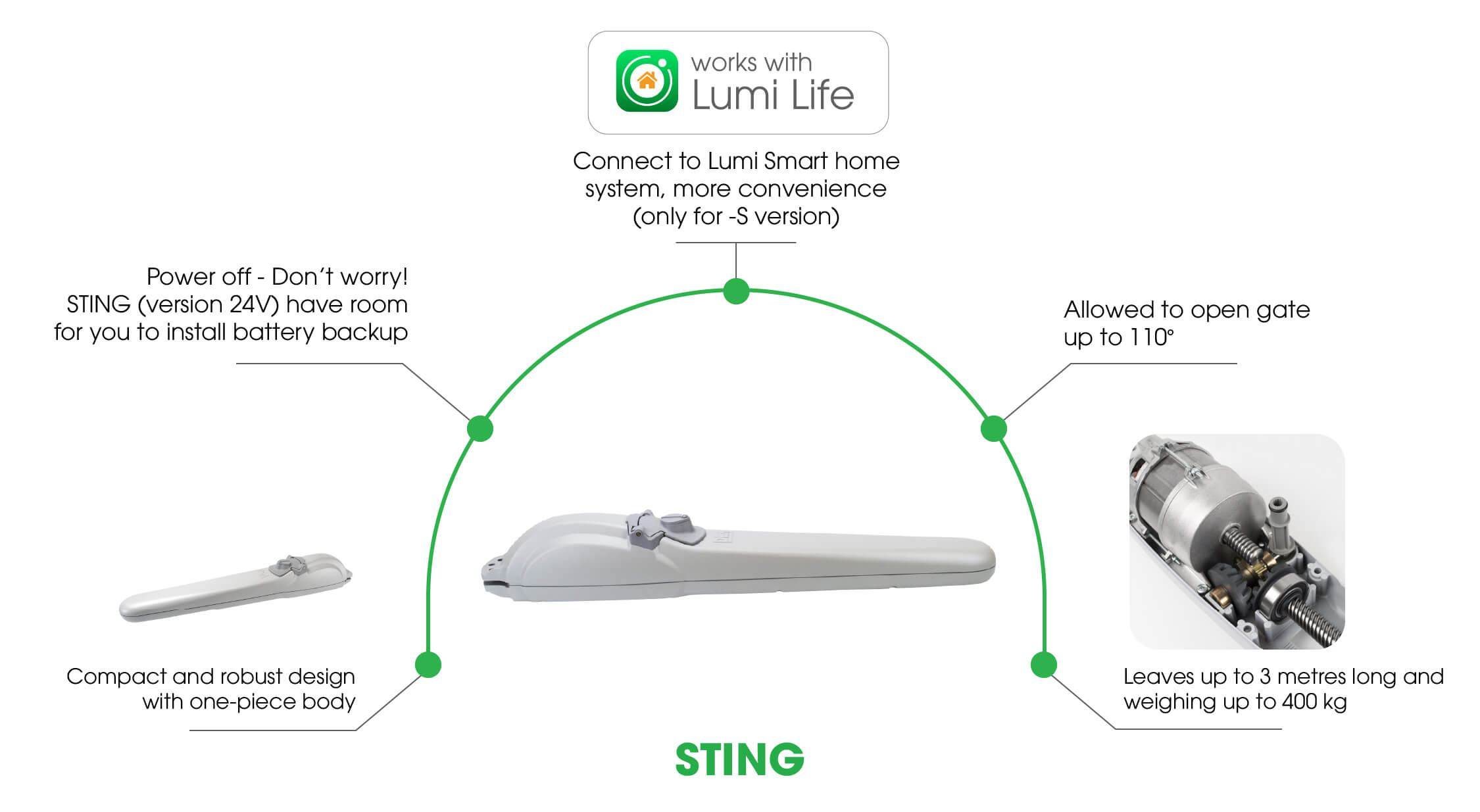

1. Automatic swing gate STING
The STING automation for swing gates moves gates in residential or apartment complexes, with leaves up to 3 metres long and weighing up to 400 kg.
Function
| Technical info | STING230V | STING24V |
| Built-in mechanical stop | No | Yes |
| Support to install backup battery | No | Yes |
| Motor power supply (V) | 230V ~ ± 10 % (50/60 Hz) | 24V |
| Maximum power absorption (W) | 300 | 50 |
| Max thrust (N) | 1650 | 1000 |
| Duty cycle (cycles/hours) | 18 | 40 |
| N. max cycles in 24 | 90 | 90 |
| Built-in capacitor (μF) | 8uF | / |
| Operating temperature (°C) | -20 to / 50 | -20 to 50 |
| Motor thermal protection (°C) | 150 | / |
| 90° angle opening time (seconds) | 16 | 16 |
| Weight with packing (Kg) | 8.8 | 8.8 |
| Sound pressure (dBA) | < 70 | < 70 |
| Protection level | IPX4 | IPX4 |
Maximum product load (blue chart)
What’s in the STING product box?
- 02 operating mechanisms, 230 VAC
- 01 NET230N/C control box (for 230V version) or 01 NET24N/C control box (for 24V version)
- 02 Handheld remote control with 2 buttons
- 01 Safety sensor

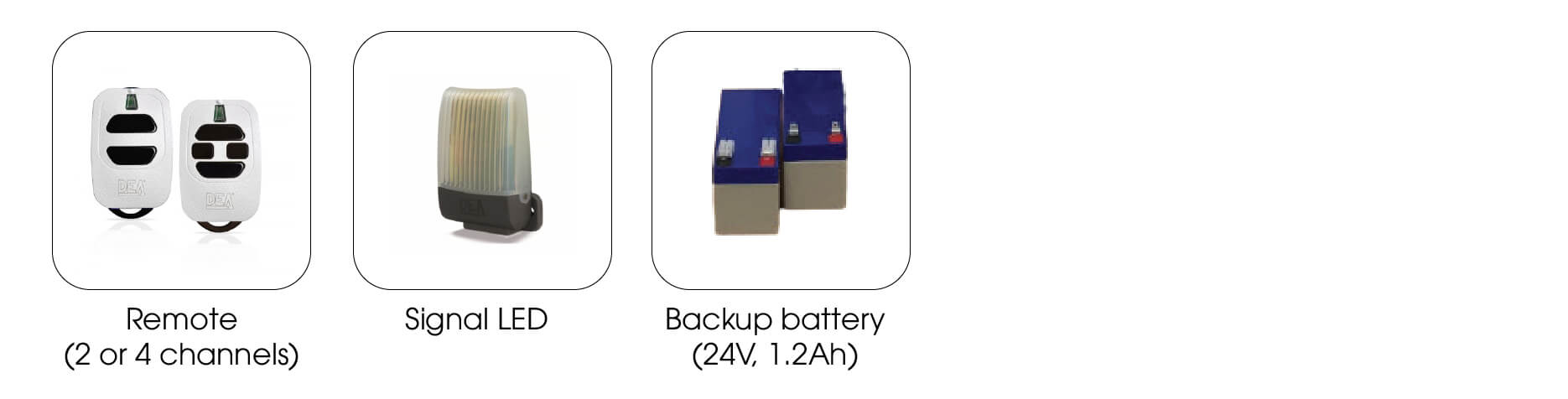

Accessories for auto swing gate motors STING – 24V

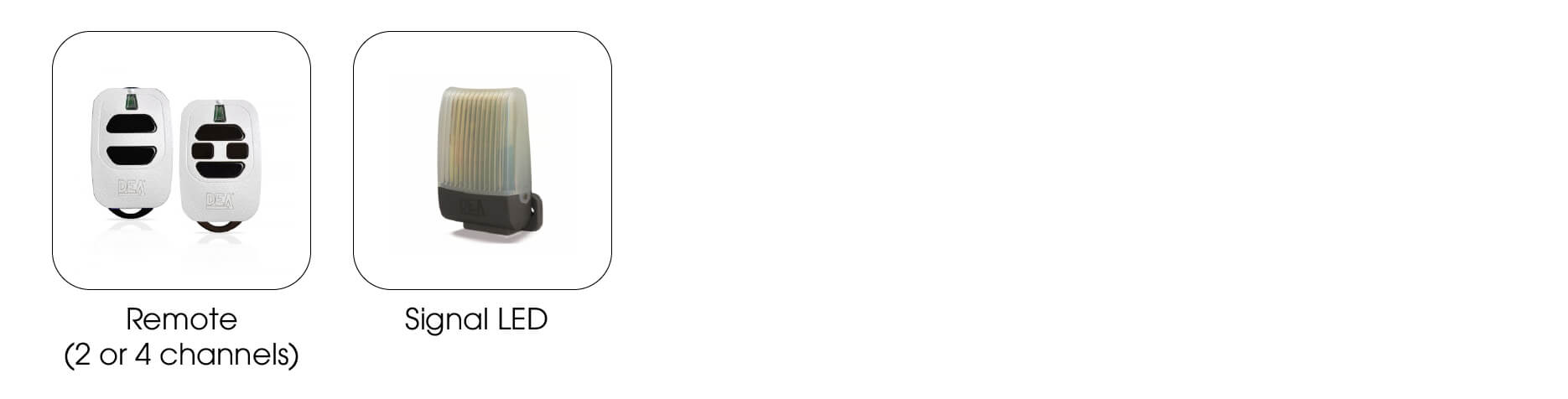

Accessories for auto swing gate motors STING – 230V
Technique
| Technical info | STING230V | STING24V |
| Built-in mechanical stop | No | Yes |
| Support to install backup battery | No | Yes |
| Motor power supply (V) | 230V ~ ± 10 % (50/60 Hz) | 24V |
| Maximum power absorption (W) | 300 | 50 |
| Max thrust (N) | 1650 | 1000 |
| Duty cycle (cycles/hours) | 18 | 40 |
| N. max cycles in 24 | 90 | 90 |
| Built-in capacitor (μF) | 8uF | / |
| Operating temperature (°C) | -20 to / 50 | -20 to 50 |
| Motor thermal protection (°C) | 150 | / |
| 90° angle opening time (seconds) | 16 | 16 |
| Weight with packing (Kg) | 8.8 | 8.8 |
| Sound pressure (dBA) | < 70 | < 70 |
| Protection level | IPX4 | IPX4 |
