Automatic underground gate GHOST 200
40.950.000₫ – 45.450.000₫
- Open the remote port via remote
- Italian imported engines
- ergonomic, neat floor design
- Wings open up to 180° with the set ART. 216GN
- Waterproof, dustproof according to IP standards
- Warranty: 24 months
Connected version with smart home Lumi, which adds the following features:
- All operations from settings to controls can be done on smartphones
- Lumi’s ability to link to intelligent security systems
- Remove remote from a smartphone, ensure safety when dropping remote
Overview
1. Automatic underground gate GHOST 200
GHOST 200 automatic ground gate can open gate with length up to 4m and weight up to 400kg. The name says all “GHOST”: This motor is completely hidden under the gate background and works with maximum accuracy and safety for family members and vehicles entering and exiting the gate.
GHOST 100 and GHOST 200 are the only two products on the market with engine casings cast from tlithic aluminum, meeting IP67 waterproof standards.
2. Function
| Technical info | Index |
| Motor power supply (V) | 230V ~ ± 10 % (50/60 Hz) |
| Maximum power absorption (W) | 400 |
| Max torque (Nm) | 320 |
| Duty cycle (cycles/hours) | 20 – 28 |
| N. max cycles in 24h. | 200 |
| Built-in capacitor (μF) | 12uF |
| Operating temperature (°C) | -20 – 50 |
| Motor thermal protection (°C) | 150 |
| 90° Opening time (s) | 17s |
| Weight with packing (Kg) | 14.5kg |
| Sound pressure (dBA) | < 70 |
| Protection level | IP67 |
Maximum weight of the product
What’s in the box of the GHOST 200 product?
-
- 02 operating mechanisms, 230VAC
- 02 soles Inox
- 01 Control box NET230N/C
- 02 Remote Controller
- 01 Safety sensor

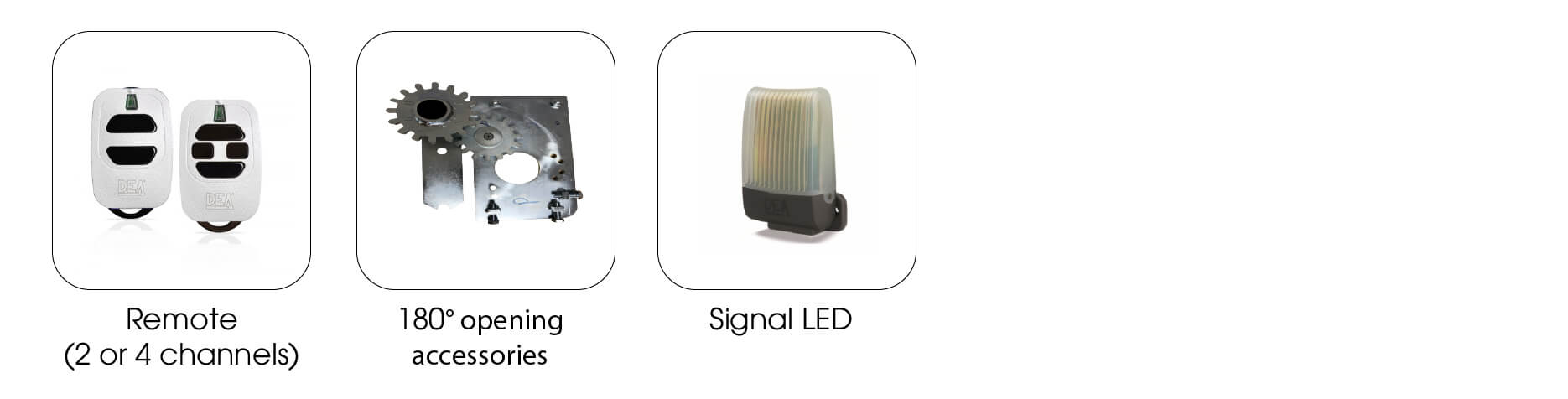

Accessories for Automatic underfloor gate GHOST 200
Technique
| Technical info | Index |
| Motor power supply (V) | 230V ~ ± 10 % (50/60 Hz) |
| Maximum power absorption (W) | 400 |
| Max torque (Nm) | 320 |
| Duty cycle (cycles/hours) | 20 – 28 |
| N. max cycles in 24h. | 200 |
| Built-in capacitor (μF) | 12uF |
| Operating temperature (°C) | -20 – 50 |
| Motor thermal protection (°C) | 150 |
| 90° Opening time (s) | 17s |
| Weight with packing (Kg) | 14.5kg |
| Sound pressure (dBA) | < 70 |
| Protection level | IP67 |
