Automatic underground gate GHOST 100
37.770.000₫ – 47.170.000₫
-
- Open the remote port via remote
- Italian imported engines
- ergonomic, neat floor design
- Waterproof, dustproof according to IP standards
- Warranty: 24 months
Connected version with smart home Lumi, which adds the following features:
- All operations from settings to controls can be done on smartphones
- Lumi’s ability to link to intelligent security systems
- Remove remote from a smartphone, ensure safety when dropping remote
1. Automatic underground gate GHOST 100
GHOST 100 automatic underground gate is designed to open gates up to 3.5m in length and weigh up to 400kg. With a floor-to-ceiling design, GHOST 100 is completely hidden under the background of your gate, bringing a well-ventilated space, maximum safety for family members and access vehicles.
GHOST 100 and GHOST 200 are the only two products on the market with engine casings cast from tlithic aluminum, meeting IP67 waterproof standards.
2. Function
| Technical info | Ver 230V | Ver 24V |
| Built-in mechanical stop | No | Yes |
| Support to install backup battery | No | Yes |
| Motor power supply (V) | 230V ~ ± 10 % (50/60 Hz) | 24V ⎓ |
| Maximum power absorption (W) | 250 | 50 |
| Max torque (Nm) | 250 | 200 |
| Duty cycle (cycles/hours) | 18 – 25 | 40 |
| N. max cycles in 24h. | 100 | 100 |
| Built-in capacitor (μF) | 10 | / |
| Operating temperature (°C) | -20 to 50 | -20 to 50 |
| Motor thermal protection (°C) | 150 | / |
| 90° Opening time (s) | 16 | 14 |
| Weight with packing (Kg) | 11 | 11 |
| Sound pressure (dBA) | < 70 | < 70 |
| Protection leve | IP67 | IP67 |
Maximum product load (orange chart)
What’s in the GHOST 100 product box?
-
- 02 operating mechanisms
- 02 soles Inox
- 01 Control box
- 02 Handheld Remotes
- 01 Safety sensor

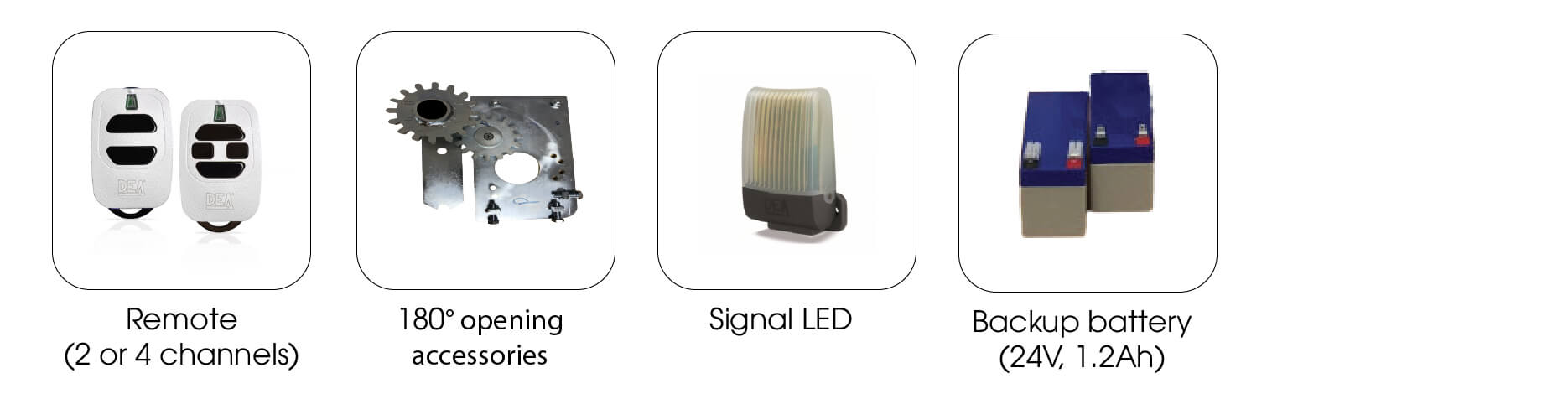

Accessories for Automatic underfloor gate GHOST 100 – 24V

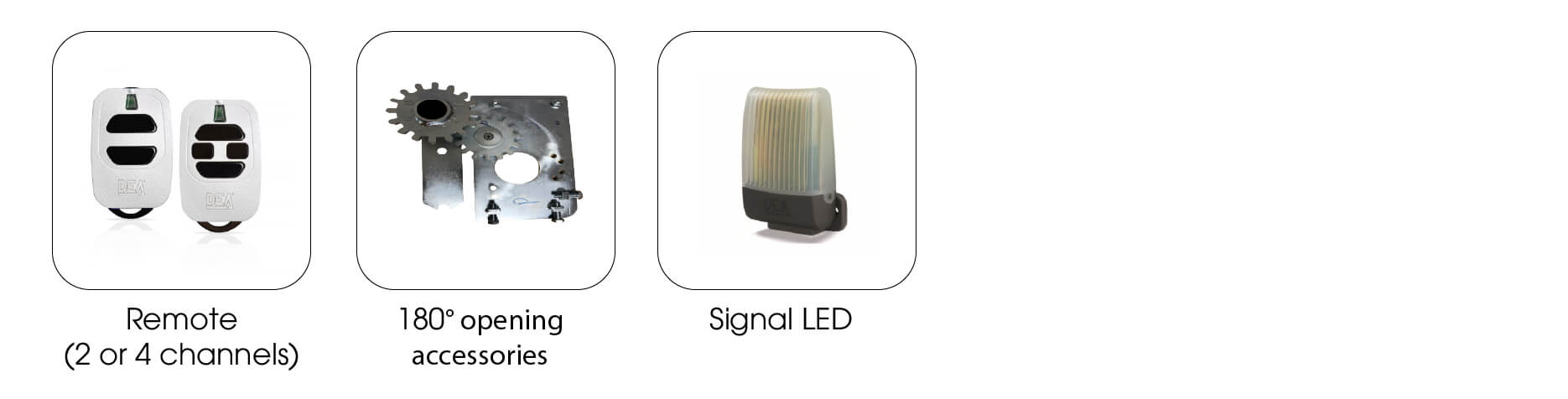

Accessories for Automatic underfloor gate GHOST 100 – 230V
| Technical info | 230V | 24V |
| Built-in mechanical stop | No | Yes |
| Support to install backup battery | No | Yes |
| Motor power supply (V) | 230V ~ ± 10 % (50/60 Hz) | 24V ⎓ |
| Maximum power absorption (W) | 250 | 50 |
| Max torque (Nm) | 250 | 200 |
| Duty cycle (cycles/hours) | 18 – 25 | 40 |
| N. max cycles in 24h. | 100 | 100 |
| Built-in capacitor (μF) | 10 | / |
| Operating temperature (°C) | -20 to 50 | -20 to 50 |
| Motor thermal protection (°C) | 150 | / |
| 90° Opening time (s | 16 | 14 |
| Weight with packing (Kg) | 11 | 11 |
| Sound pressure (dBA) | < 70 | < 70 |
| Protection leve | IP67 | IP67 |
