Automatic sliding gates LIVI
20.110.000₫ – 26.550.000₫
- Italian imported engines
- Smart sensor detects obstructions when doors are closed
- The circuit allows the battery to be charged, used even when the power is out
- Warranty: 24 months
Lumi Smart Home Connector, which adds the following features:
- All operations from settings to controls can be done on smartphones
- Lumi’s ability to link to intelligent security systems
- Remove remote from smartphone, ensure safety when dropping remote
Overview

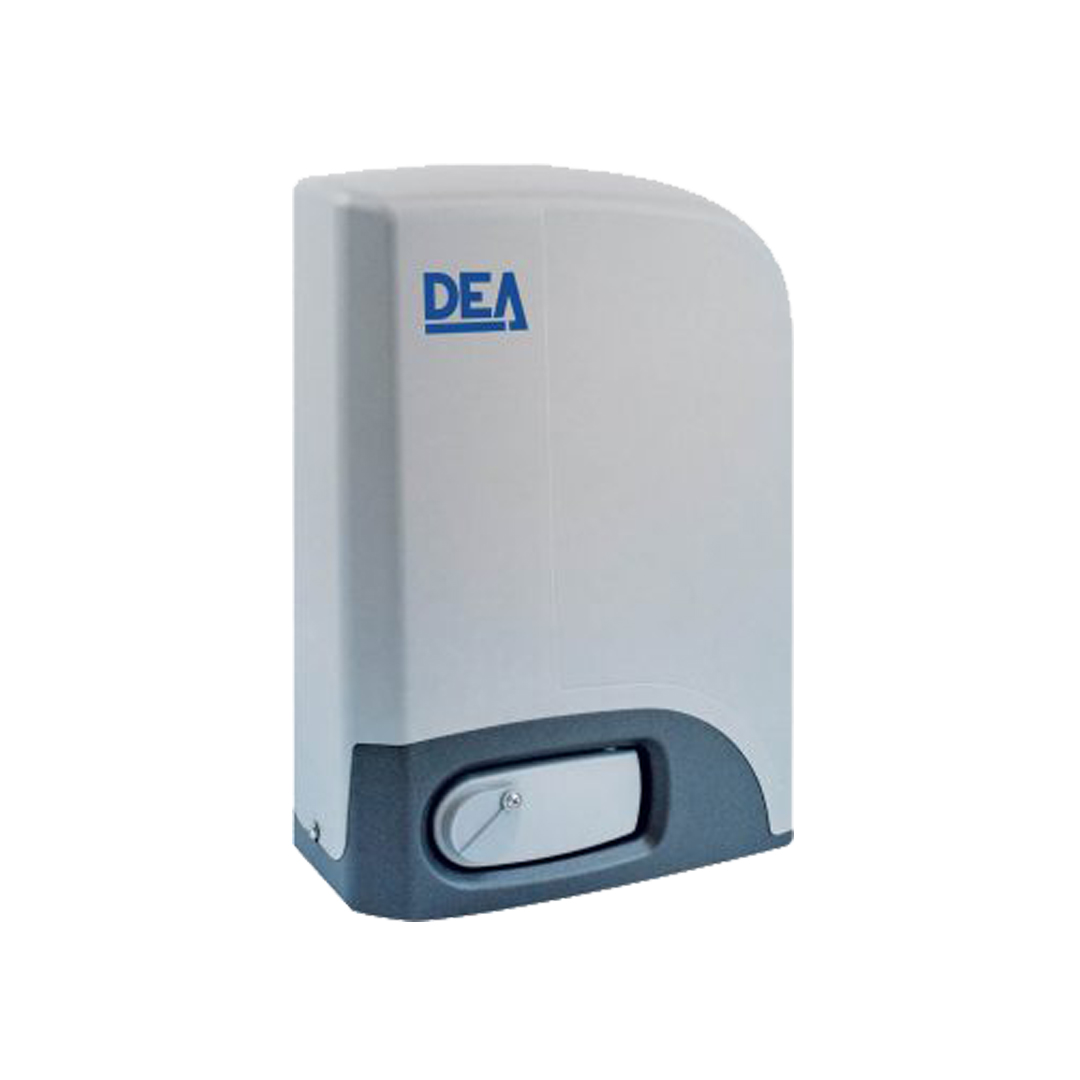

Automatic sliding gates LIVI
1. Automatic sliding gates LIVI
Automatic sliding gate LIVI can open gates with a weight of up to 600kg (for LIVI6 version) or 900kg (for LIVI9 version). With a modern and neat design, LIVI is often used in villa buildings.
2. Function
| Technical info | LIVI6 | LIVI9 |
| Built-in mechanical stop | Yes | Yes |
| Support to install backup battery | Yes | Yes |
| Motor power supply (V) | 24V ⎓ | 24V ⎓ |
| Maximum power absorption (W) | 80 | 110 |
| Max thrust (N) | 210 | 260 |
| Duty cycle (cycles/h)* | 22 | 18 |
| N. max. cycles in 24h* | 60 | 40 |
| Built-in capacitor (μF) | / | / |
| Operating temperature (°C) | -20 to 50 | -20 to 50 |
| Motor thermal protection (°C) | / | / |
| Speed (m/min) | 16m/min | 10m/min |
| Weight with packing (Kg) | 12 | 12 |
| Sound pressure (dBA) | < 70 | < 70 |
| Protection level | IPX4 | IPX4 |
What’s in the LIVI product box?
-
- 01 operating mechanism, 24 VDC
- 02 mechanical keys
- 01 Control box NET24/C
- 02 Handheld Remote with 2 buttons
- 01 Safety sensor
Accessories for automatic sliding gate motor LIVI
Technique
| Technical info | LIVI6 | LIVI9 |
| Built-in mechanical stop | Yes | Yes |
| Support to install backup battery | Yes | Yes |
| Motor power supply (V) | 24V ⎓ | 24V ⎓ |
| Maximum power absorption (W) | 80 | 110 |
| Max thrust (N) | 210 | 260 |
| Duty cycle (cycles/h)* | 22 | 18 |
| N. max. cycles in 24h* | 60 | 40 |
| Built-in capacitor (μF) | / | / |
| Operating temperature (°C) | -20 to 50 | -20 to 50 |
| Motor thermal protection (°C) | / | / |
| Speed (m/min) | 16m/min | 10m/min |
| Weight with packing (Kg) | 12 | 12 |
| Sound pressure (dBA) | < 70 | < 70 |
| Protection level | IPX4 | IPX4 |
