Automatic sliding gate REV
27.170.000₫ – 31.170.000₫
- Italian imported engines
- Smart sensor detects obstructions when doors are closed
- Ability to close/open gate up to 1400kg
- Warranty: 24 months
Lumi Smart Home Connector, which adds the following features:
- All operations from settings to controls can be done on smartphones
- Lumi’s ability to link to intelligent security systems
- Remove remote from smartphone, ensure safety when dropping remote

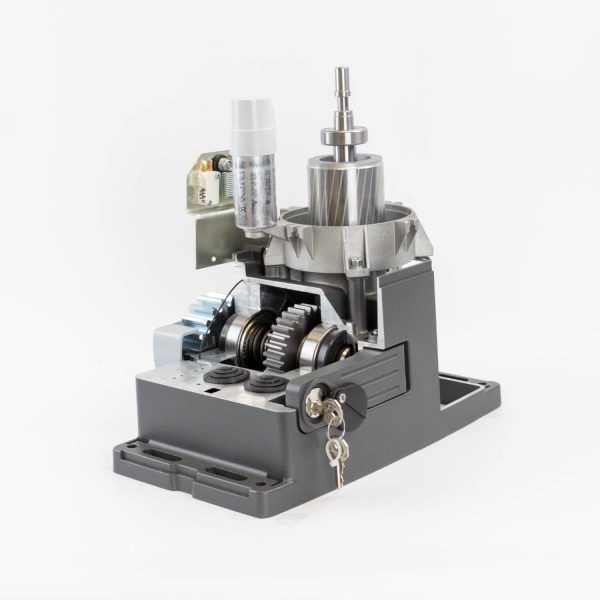

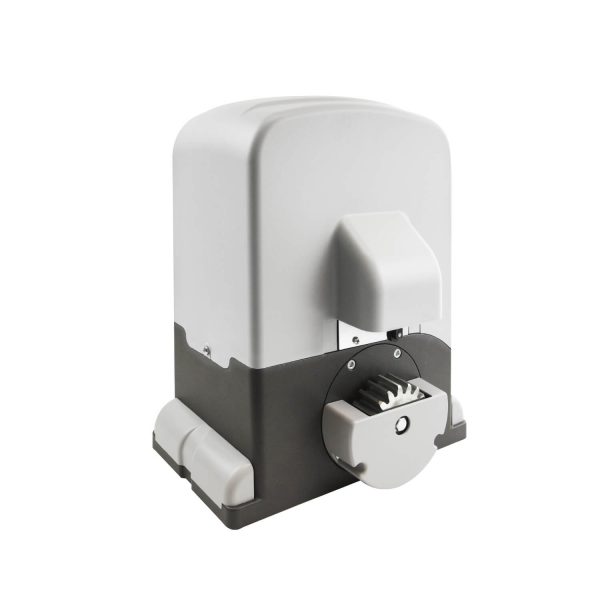

Automatic Sliding Gate REV
REV Automatic Sliding Gate is designed specifically for apartment buildings and companies that regularly open and close heavy gates (up to 1400kg). In addition, REV automatic sliding gate is also capable of installing iron boxes to protect, avoid vandalism, theft, suitable for many people.
Function
| Technical info | Index |
| Motor power supply (V) | 230V ~ ± 10 % (50/60 Hz) |
| Maximum power absorption (W) | 500 |
| Max thrust (N) | 900 |
| Duty cycle (cycles/hours) for an 8m leaf length | 27 for 1000kg 22 for1400kg |
| N. max. cycles in 24h. for an 8m leaf length | 270 for 1000kg 220 for 1400kg |
| Built-in capacitor (μF) | 14 uF |
| Operating temperature (°C) | -20 ÷ 50 |
| Speed (m/min) | 10 |

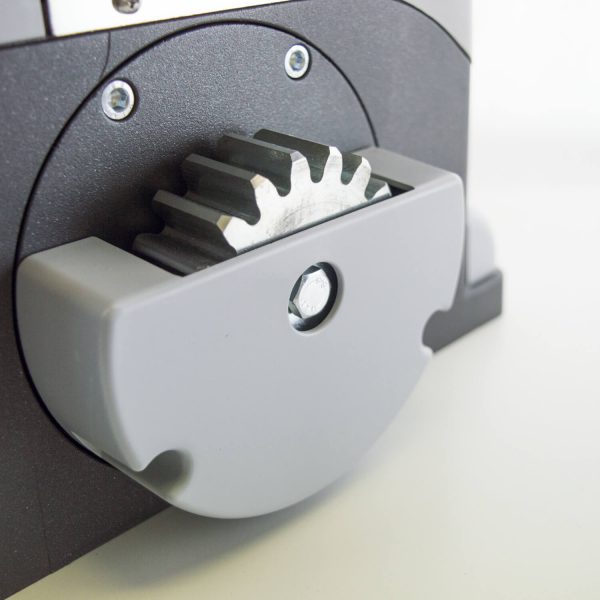

| Standard pinion | Z18 |
| Weight with packing (Kg) | 18 |
| Sound pressure (dBA) | < 70 |
| Protection level | IPX4 |
What’s in the REV product box?
- 01 operating mechanism, 230 VAC
- 02 mechanical keys
- 01 Control box NET230N/C
- 02 remote control with 2 buttons
- 01 Safety sensor
Accessories for automatic sliding gate REV
| Technical info | Index |
| Motor power supply (V) | 230V ~ ± 10 % (50/60 Hz) |
| Maximum power absorption (W) | 500 |
| Max thrust (N) | 900 |
| Duty cycle (cycles/hours) for an 8m leaf length | 27 for 1000kg 22 for1400kg |
| N. max. cycles in 24h. for an 8m leaf length | 270 for 1000kg 220 for 1400kg |
| Built-in capacitor (μF) | 14 uF |
| Operating temperature (°C) | -20 ÷ 50 |
| Speed (m/min) | 10 |
| Standard pinion | Z18 |
| Weight with packing (Kg) | 18 |
| Sound pressure (dBA) | < 70 |
| Protection level | IPX4 |
