Automatic swing gate LOOK
25.670.000₫ – 29.970.000₫
- Open the remote port via remote
- Italian imported engines
- ergonomic design, neat design
- Own 2 axes available 3m or 5m
- Warranty: 24 months
Connected version with smart home Lumi, which adds the following features:
- All operations from settings to controls can be done on smartphones
- Lumi’s ability to link to intelligent security systems
- Remove remote from a smartphone, ensure safety when dropping remote
1. Auto swing gate LOOK

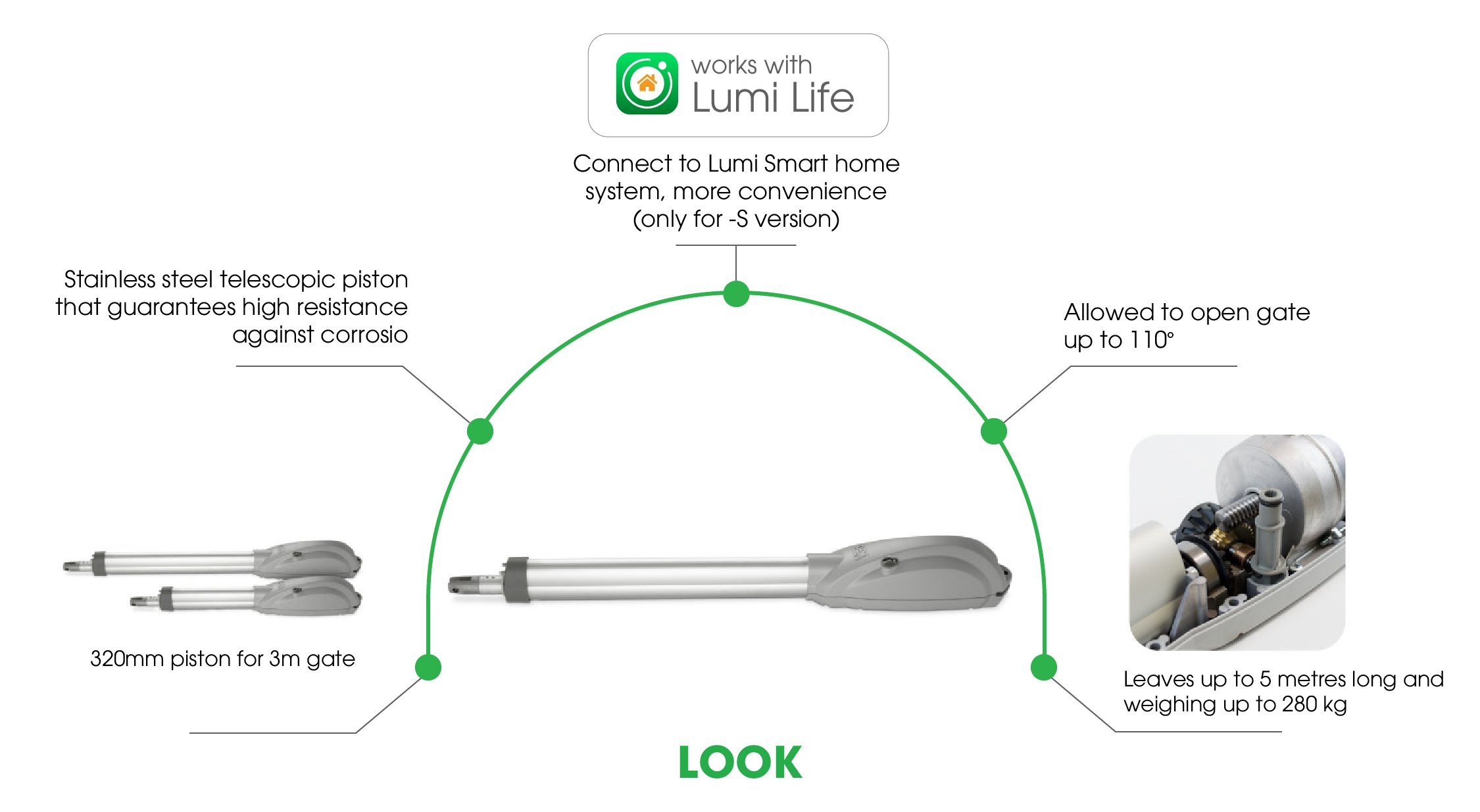

With wide and long gates used in villas or in the office area, look automatic gate is a suitable choice. With a shaft version long 520mm, LOOK automatic gate can open ports up to 5 meters in length, and a maximum load of 280kg
2. Function
| Technical info | Index |
| Built-in mechanical stop | Yes |
| Support battery backup | Yes |
| Motor power supply (V) | 24VDC |
| Maximum power absorption (W) | 600 |
| Motor power supply (V) | 1000 |
| Duty cycle (cycles/hours) | 40 |
| N. max cycles in 24h. | 110 |
| Built-in capacitor (μF) | / |
| Operating temperature (°C) | -20 to 50 |
| Motor thermal protection (°C) | / |
| 90° Opening time (s) | 15 |
| Weight with packing (Kg) | 9 |
| Sound pressure (dBA) | < 70 |
| Protection level | IP24 |
Maximum product load (blue chart)
What’s in the LOOK product box?
-
- 02 actuators, 24 VDC
- 01 Control box NET24N/C
- 02 Handheld remote control
- 01 Safety sensor
Accessories for underground gate motors LOOK
| Technical info | Index |
| Built-in mechanical stop | Yes |
| Support battery backup | Yes |
| Motor power supply (V) | 24VDC |
| Maximum power absorption (W) | 600 |
| Motor power supply (V) | 1000 |
| Duty cycle (cycles/hours) | 40 |
| N. max cycles in 24h. | 110 |
| Built-in capacitor (μF) | / |
| Operating temperature (°C) | -20 to 50 |
| Motor thermal protection (°C) | / |
| 90° Opening time (s) | 15 |
| Weight with packing (Kg) | 9 |
| Sound pressure (dBA) | < 70 |
| Protection level | IP24 |
